fredag 27. desember 2019

QRV from Lofoten Remote from Molde

Remote Rig




EU-076 Lofoten
End fed antenna, very bad...
The antenna is seen in the picture. Low over ground, Short and almost no counterpoise...





Nice WX in Molde, Romsdalen..


mandag 20. mai 2019

Portable QO-100 setup

While I wait for the 20W Amp...

40cm dish. Modified Starcom SR-3602ACE twin LNB
I found this LNB to be the most sensitive and great for the purpose.


Works great.
100nF capacitor without removing the 25MHz crystal.
Then I feed stabilized frequency from mini Leo Bodnar.


POTY Patch Of The Year...


200mAh on receive for the SG-Labs transverter


1.03 Ah on TX


1W from FT-817nd. Probably to be adjusted down when PA is added.
2 green led’s on the transverter is good! 😊
432.045 - 432.295 gives 2400.50 - 2400.300
432.190 in is roughly 10.489689GHz down





onsdag 10. april 2019

Good antennas and Analyzer...

This antenna can make a good uplink antenna for Es’hail-2 satellit at 2400 MHz


Very good patch antenna.
For 13cm it is ready to go.
For 3cm, I need an downconverter to 70cm.




My new rig?


Making the LNB ready for POTY antenna.
Modification needed for GPS stabilized frequency.


One version of it should be with tcxo.
Adjusted for 432MHz


lørdag 26. januar 2019

SoftRock RX Ensemble II

Closing in now...
Done with the Band 2 BPF.
Band 3 now..

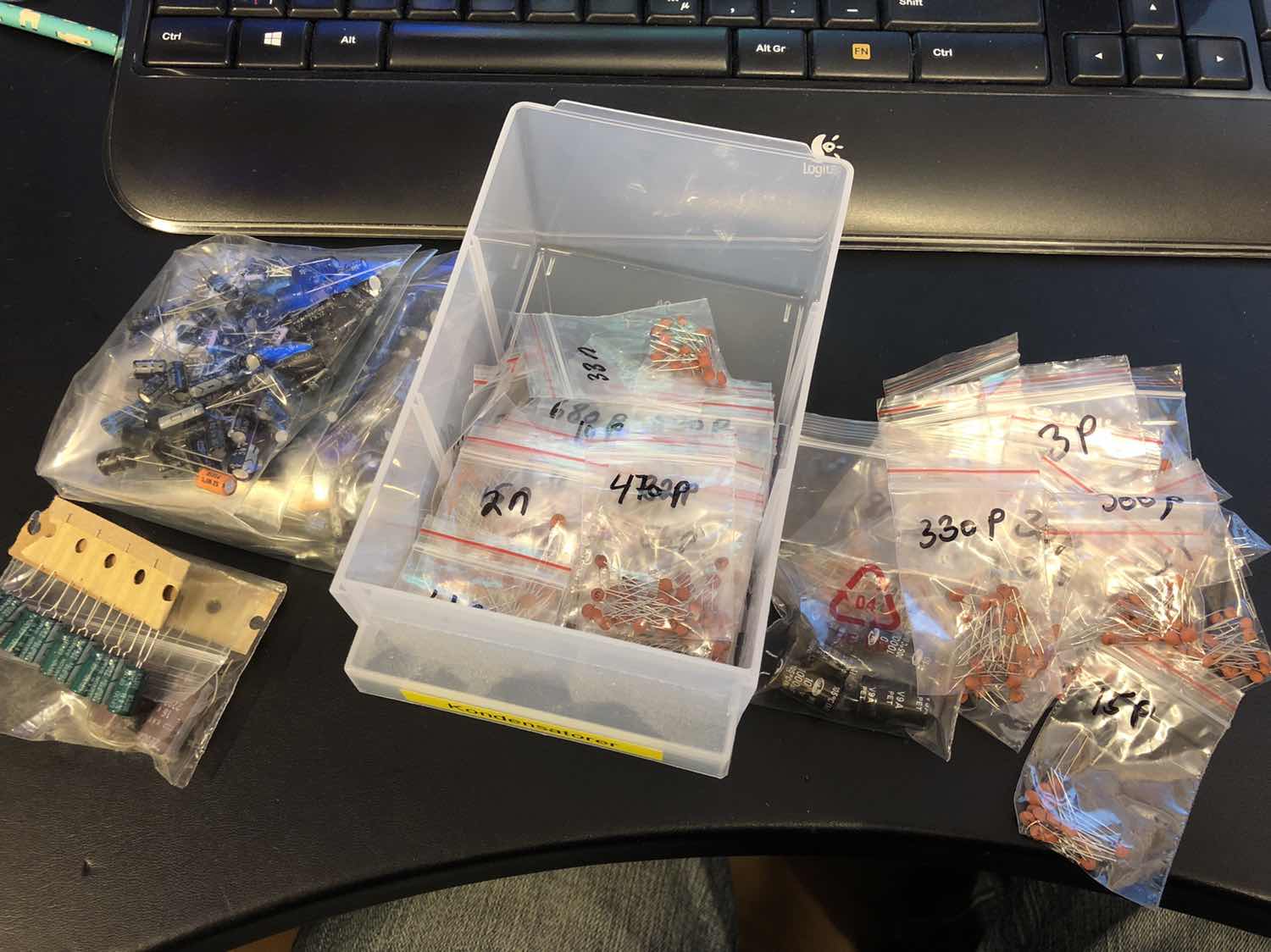

So, I have s old kit..
C18 was changed from 390pF to 330pF in 2016.
Have it here...


Will have to do...



onsdag 16. januar 2019

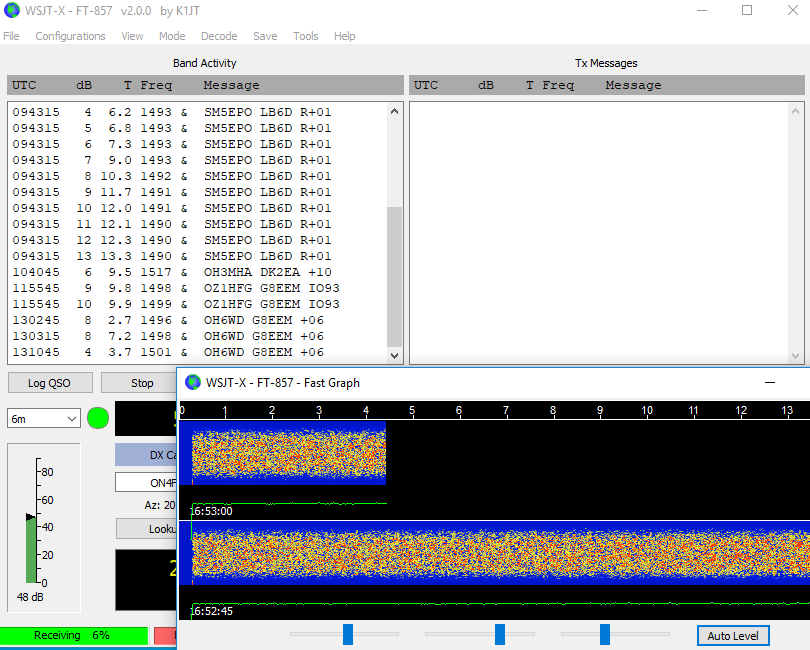

Working WSJT-X

It's impressive that any stations are heard through the noise..

We found 3 sources of noise at the local neighbour.
3 zones of downlight spots in their basement.
1 zone with about 8 spots in it is the worse one. There is one spot gone bad, so if we are lucky it is the driver for the bad spot which makes the noise.

So, the neighbour will come back to me - hopefully we can solve this issue.


søndag 6. januar 2019

5m more up in the air


6-meter antenna
5el 50-ohm 8.5 dBd pointed 180° 5° elevation


But noisy conditions from neighbours... :-(
I have 3 sources of noise. It is 50Hz noise, so probably a gas light starter x 2











Makes it impossible to work weak-signals from scatters or the moon..




torsdag 3. januar 2019

QRT. Pointing antennas south for RX


Many pings from DL1OBF

Many pings from Wilfried..


QRV both from JO59 and JP68.

Since I work 2 QTH's at the same time, I have to call with locator first so the Receiving station know which one is active.

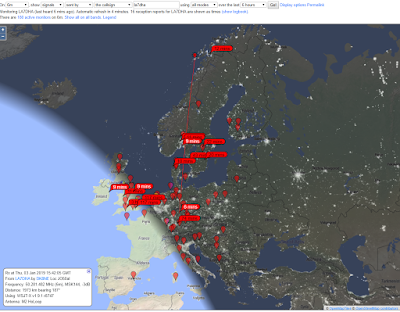

Pretty good distance - 1973Km.... It's possible, Uli.



Weather: JP68:














Weather JO59:

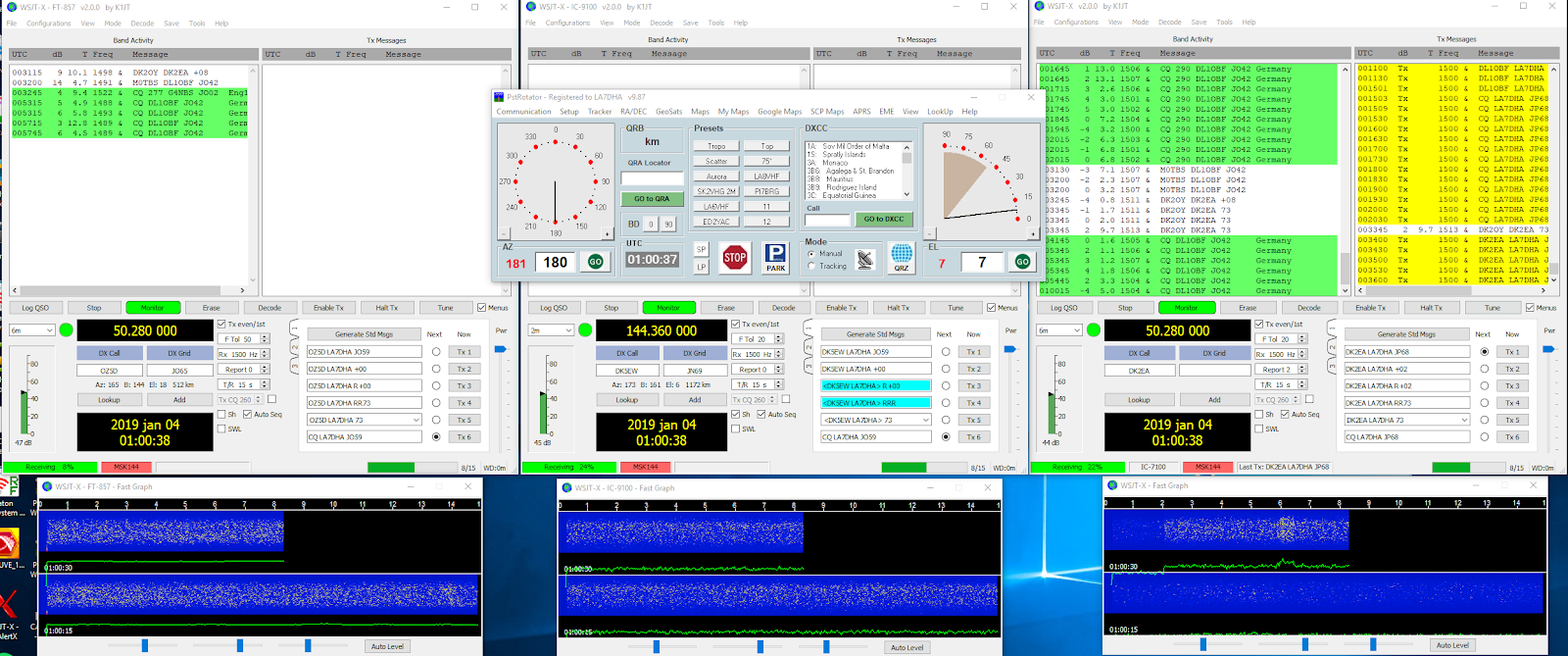

And now.. 3 rigs.. 144, 50(JO59) and 50(JP68)




onsdag 2. januar 2019

2 sessions of WSJT-X 2.0

Running Both JO59 and JP68
Listening MSK144 on both QTH's @ 6-meter
















The way to configure it:
@ shortcut, configure "target" to the needed radio configuration;
C:\WSJT\wsjtx20\bin\wsjtx.exe --rig-name=IC-9100

Not the best...
Neighbour came home - no RX in JO59 then..


tirsdag 1. januar 2019
